Description

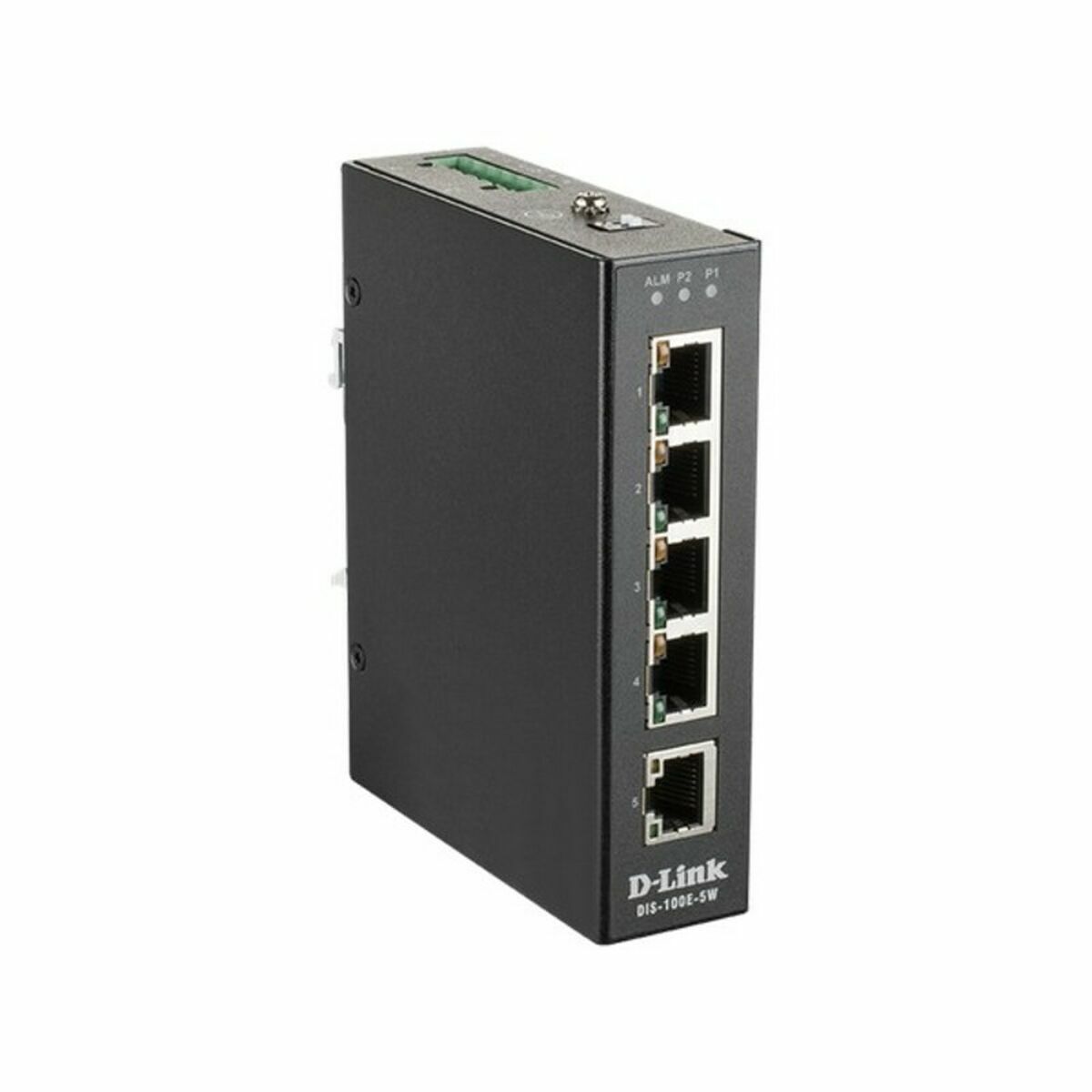

xIf you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Cabinet Switch D-Link DIS-100E-5W RJ45 x 5 at an unbeatable price.
- Colour: Black
- Connections:
- RJ45
- RJ45 x 5
- Energy consumption: 1,58 W
- Approx. dimensions: 10,92 x 2,91 x 8,94 cm
- Product with plug: Yes
- Type of plug: Plug EU
- Characteristics:
- Wireless
- Wall mounting
- Plug & Play
- Type:
- Rack
- Stackable
- Ports: 8
- IP rating: IP30
Unmanaged Plug and Play Plug in and go. The DIS-100E-5W reliably forwards Ethernet frames. Fast Ethernet Connectivity Designed with 5 x 10/100BaseT(X) Fast Ethernet ports to suit your network layout. Officially Certified Certifications for vibration, shock, free-fall and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks. Withstands Extreme Temperatures Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C. Strong Build The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty. Fast Deployment For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting. Fanless Design With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
- Switch type: Unmanaged
- Switch layer: L2
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
- Relay outputs: 1
- Networking standards: IEEE 802.3x
- 10G support: N
- Copper ethernet cabling technology: 10BASE-T,100BASE-TX,100BASE-T
- Full duplex: Y
- Flow control support: Y
- Broadcast storm control: Y
- Auto MDI/MDI-X: Y
- Auto-negotiation: Y
- MAC address table: 1000 entries
- Store-and-forward: Y
- Rack mounting: Y
- Stackable: Y
- Product colour: Black
- International Protection (IP) code: IP30
- Wall mountable: Y
- DIN rail mounting: Y
- Certification: UL 60950‑1 CE FCC
- Plug and Play: Y
- Mean time between failures (MTBF): 219000 h
- Shipping (inner) case height: 20 cm
- Shipping (inner) case width: 30.5 cm
- Shipping (inner) case length: 43 cm
- Shipping (inner) case net weight: 5.78 kg
- Products per shipping (inner) case: 10 pc(s)
- Pallet gross weight (air): 226.4 kg
- Master (outer) cases per pallet (air): 36 pc(s)
- Products per pallet (air): 360 pc(s)
- Pallet gross length: 120 cm
- Pallet gross width: 110 cm
- Pallet height (air): 135 cm
- Pallet gross weight (sea): 330.7 kg
- Master (outer) cases per pallet (sea): 54 pc(s)
- Products per pallet (sea): 540 pc(s)
- Pallet height (sea): 195 cm
- Shipping (inner) case gross weight: 5.79 kg
- DC input voltage: 12 - 58 V
- Power consumption (typical): 0.95 W
- Power consumption (max): 1.56 W
- Power over Ethernet (PoE): N
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 29.1 mm
- Depth: 89.4 mm
- Height: 109.2 mm
- Weight: 320 g
- Package width: 140 mm
- Package depth: 178 mm
- Package height: 83 mm
- Package weight: 488 g
